Fitbit Sleep Summary

Sensor parameters description for [FITBIT_SLEEP_SUMMARY]:

Key                              Description
[CONTAINER] Container where your sleep summary data is stored, depending on the data stream you are using this can be a database table, a CSV file, etc.

RAPIDS provider

Understanding RAPIDS features

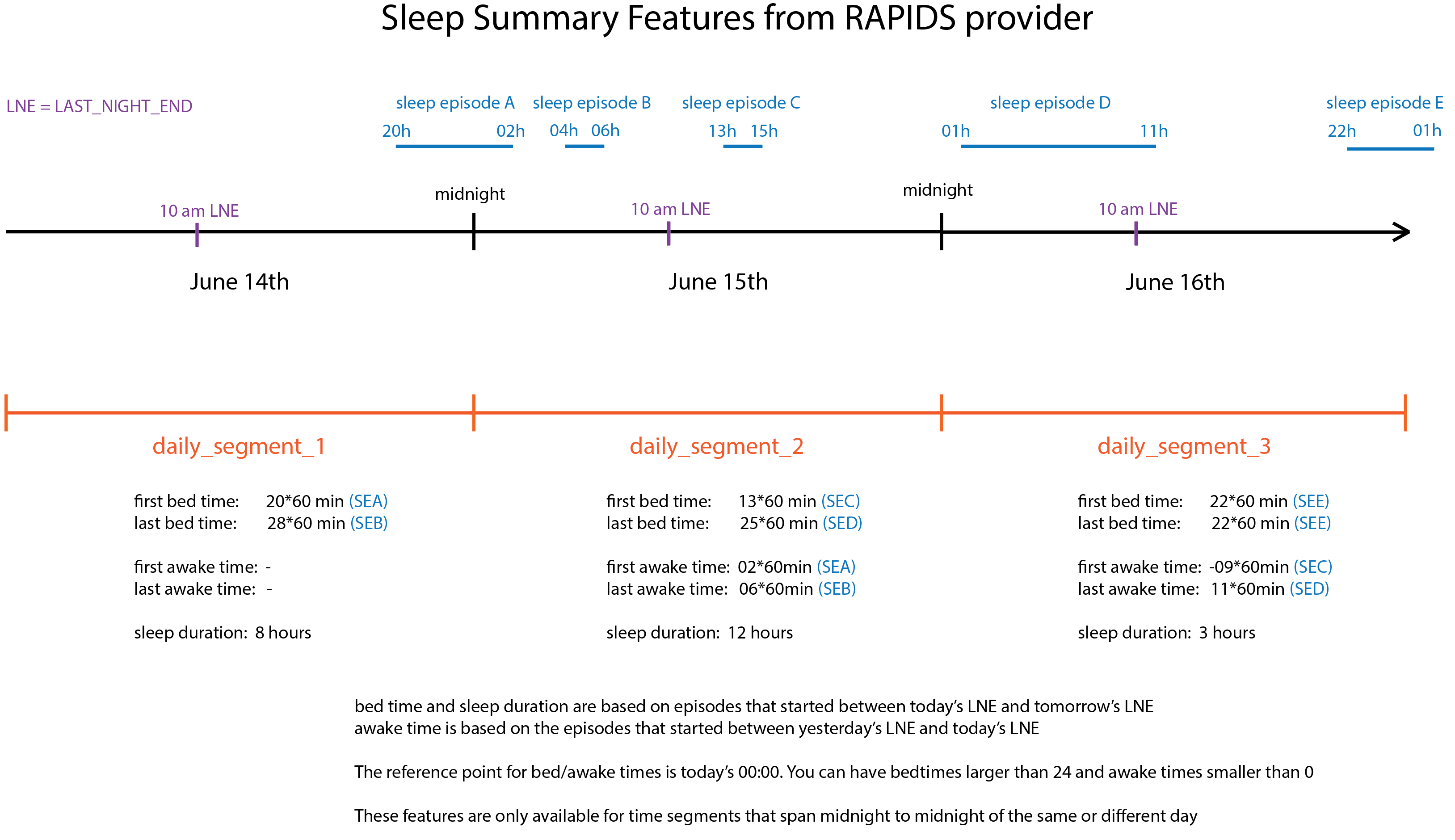

This diagram will help you understand how sleep episodes are chunked and grouped within time segments using SLEEP_SUMMARY_LAST_NIGHT_END for the RAPIDS provider.

Available time segments

  • Only available for segments that span 1 or more complete days (e.g. Jan 1st 00:00 to Jan 3rd 23:59)

File Sequence

- data/raw/{pid}/fitbit_sleep_summary_raw.csv
- data/raw/{pid}/fitbit_sleep_summary_with_datetime.csv
- data/interim/{pid}/fitbit_sleep_summary_features/fitbit_sleep_summary_{language}_{provider_key}.csv
- data/processed/features/{pid}/fitbit_sleep_summary.csv

Parameters description for [FITBIT_SLEEP_SUMMARY][PROVIDERS][RAPIDS]:

Key                              Description
[COMPUTE] Set to True to extract FITBIT_SLEEP_SUMMARY features from the RAPIDS provider
[SLEEP_TYPES] Types of sleep to be included in the feature extraction computation. There are three sleep types: main, nap, and all. The all type means both main sleep and naps are considered.
[FEATURES] Features to be computed from sleep summary data, see table below
[FITBIT_DATA_STREAMS][data stream][SLEEP_SUMMARY_LAST_NIGHT_END] As an exception, the LAST_NIGHT_END parameter for this provider is in the data stream configuration section. This parameter controls how sleep episodes are assigned to different days and affects wake and bedtimes.

Features description for [FITBIT_SLEEP_SUMMARY][PROVIDERS][RAPIDS]:

Feature Units Description
firstwaketimeTYPE minutes First wake time for a certain sleep type during a time segment. Wake time is number of minutes after midnight of a sleep episode’s end time.
lastwaketimeTYPE minutes Last wake time for a certain sleep type during a time segment. Wake time is number of minutes after midnight of a sleep episode’s end time.
firstbedtimeTYPE minutes First bedtime for a certain sleep type during a time segment. Bedtime is number of minutes after midnight of a sleep episode’s start time.
lastbedtimeTYPE minutes Last bedtime for a certain sleep type during a time segment. Bedtime is number of minutes after midnight of a sleep episode’s start time.
countepisodeTYPE episodes Number of sleep episodes for a certain sleep type during a time segment.
avgefficiencyTYPE scores Average sleep efficiency for a certain sleep type during a time segment.
sumdurationafterwakeupTYPE minutes Total duration the user stayed in bed after waking up for a certain sleep type during a time segment.
sumdurationasleepTYPE minutes Total sleep duration for a certain sleep type during a time segment.
sumdurationawakeTYPE minutes Total duration the user stayed awake but still in bed for a certain sleep type during a time segment.
sumdurationtofallasleepTYPE minutes Total duration the user spent to fall asleep for a certain sleep type during a time segment.
sumdurationinbedTYPE minutes Total duration the user stayed in bed (sumdurationtofallasleep + sumdurationawake + sumdurationasleep + sumdurationafterwakeup) for a certain sleep type during a time segment.
avgdurationafterwakeupTYPE minutes Average duration the user stayed in bed after waking up for a certain sleep type during a time segment.
avgdurationasleepTYPE minutes Average sleep duration for a certain sleep type during a time segment.
avgdurationawakeTYPE minutes Average duration the user stayed awake but still in bed for a certain sleep type during a time segment.
avgdurationtofallasleepTYPE minutes Average duration the user spent to fall asleep for a certain sleep type during a time segment.
avgdurationinbedTYPE minutes Average duration the user stayed in bed (sumdurationtofallasleep + sumdurationawake + sumdurationasleep + sumdurationafterwakeup) for a certain sleep type during a time segment.

Assumptions/Observations

  1. This diagram will help you understand how sleep episodes are chunked and grouped within time segments using LNE for the RAPIDS provider.
  2. There are three sleep types (TYPE): main, nap, all. The all type groups both main sleep and naps. All types are based on Fitbit’s labels.
  3. There are two versions of Fitbit’s sleep API (version 1 and version 1.2), and each provides raw sleep data in a different format:
    • Count & duration summaries. v1 contains count_awake, duration_awake, count_awakenings, count_restless, and duration_restless fields for every sleep record but v1.2 does not.
  4. API columns. Most features are computed based on the values provided by Fitbit’s API: efficiency, minutes_after_wakeup, minutes_asleep, minutes_awake, minutes_to_fall_asleep, minutes_in_bed, is_main_sleep and type.
  5. Bed time and sleep duration are based on episodes that started between today’s LNE and tomorrow’s LNE while awake time is based on the episodes that started between yesterday’s LNE and today’s LNE
  6. The reference point for bed/awake times is today’s 00:00. You can have bedtimes larger than 24 and awake times smaller than 0
  7. These features are only available for time segments that span midnight to midnight of the same or different day.
  8. We include first and last wake and bedtimes because, when LAST_NIGHT_END is 10 am, the first bedtime could match a nap at 2 pm, and the last bedtime could match a main overnight sleep episode that starts at 10pm.
  9. Set the value for SLEEP_SUMMARY_LAST_NIGHT_END int the config parameter [FITBIT_DATA_STREAMS][data stream][SLEEP_SUMMARY_LAST_NIGHT_END].
